BH-55 and BH-40 Dovetail Plates

User guide for the RRS® Dovetail Plates to use with standard RRS® BH-55 and BH-40 Ball Heads and mounts.

dovetailplateFRONT-PAGE



SPECIFICATIONS

Diameter TH-DVTL 55

2.9-inches (73mm)

Diameter TH-DVTL 40

2.1-inches (53mm)

Weight DVTL-55 /DVTL‑ 40

2.1oz (59g) / 1.3oz (37g)

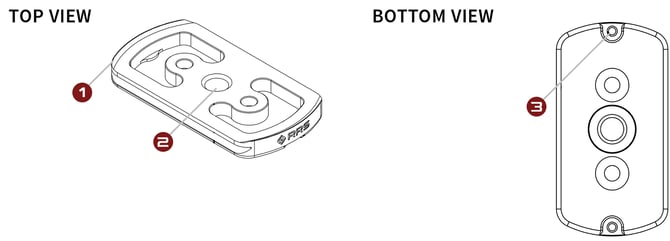

THDVTL-top-bottom

  1. Thin perimeter lip on the TH-DVTL (40 and 55) creates a seamless fit with RRS® PG-02, FG-02, BH-55 and BH-40 heads.

  2. Non-threaded center hole accepts 3/8" captive screw (included).

  3. Safety stop screws prevent accidental release.

Dovetails fit all Really Right Stuff clamps.

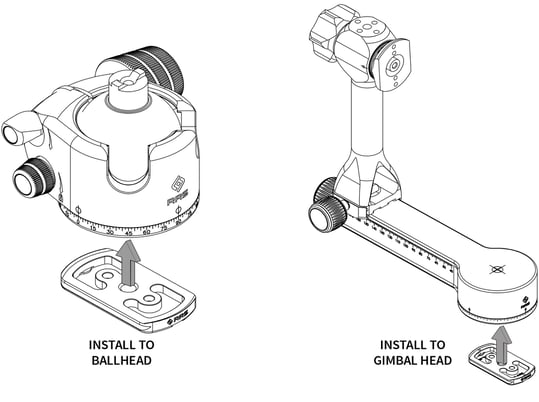

INSTALLATION

Wipe off bottom of tripod head to prevent trapping dirt or grit. Line up the TH-DVTL and use included hex key to firmly tighten mounting screw. Flush mount fit will be seamless. Add the TH-DVTL to your tripod head to quickly swap it between different mounts.

installation-THDVTL-2

MAINTENANCE

GENERAL CARE

The TH-DVTL is made of 6061-T6 aluminum and finished with a protective anodize plating that protects it from corrosion and mild abrasion. It will not protect it from scraping or dropping on rocks/concrete/etc. Take precautions to prevent trapping sand or grit between the TH-DVTL and your tripod head.
