Product Overview
RRS Leg Conversion Caps are twist lock thread covers designed to help you reduce the number of leg sections in a compatible, preexisting tripod. For users who do not need full height all the time and want to shave weight, these threaded caps provide an ideal solution. Instead of buying a new tripod, an RRS tripod owner can convert an existing system into a shorter tripod while removing the extra weight of the unused leg sections—ideal for backcountry enthusiasts who are counting every gram and optimizing their setup for the mission.
The Leg Conversion Kit allows you to transform your tripod from a standard three-leg configuration into a versatile support platform. Whether you are setting up a lightweight monopod, a stabilized platform, or prepping your gear for travel, this kit provides an easy, tool-free process for safely removing and converting tripod legs. Each component is precision-machined for a secure thread fit and smooth operation. The conversion cap protects internal threads while serving as the attachment point for different foot accessories such as rubber feet, spikes, or claws. Installation instructions
Key Features
-
Thread-Safe Design: Precision-cut threads ensure a tight, repeatable fit when removing and reinstalling legs.
-
Wide Compatibility: Leg conversion caps work with all Mk2 carbon fiber tripods, and accept all standard RRS threaded foot types, including rubber, spike, and claw feet.
-
Field-Friendly Build: All components are designed for quick hand installation with no tools required.
Conversion Cap Size Options
Option 1 – Series 1 Tubes – 1.57" (3.99 cm)
For Series 1 tube diameter:
-
Use to remove legs thinner than the series 1 tubes on your tripod.
-
Converts series 34/34L to 33/33L, 24/24L to 23/23L, and 14/13 to single section tripods.
-
Accepts all RRS® feet and feet replacements.
-
Install the Series 1 conversion cap, ensuring a clean, even thread alignment.
Option 2 – Series 2 Tubes – 1.73" (4.39 cm)
For Series 2 tube diameter:
-
Use to remove legs thinner than the series 2 tubes on your tripod.
-
Converts series 34/34L to 32/32L, 33 to 32 and 24/24L to 22/22L. Will not fit on 13 and 14 series tripods.
-
Accepts all RRS® feet and feet replacements.
-
Attach the Series 2 conversion cap, ensuring a clean, even thread alignment.
Installing Leg Conversion Caps

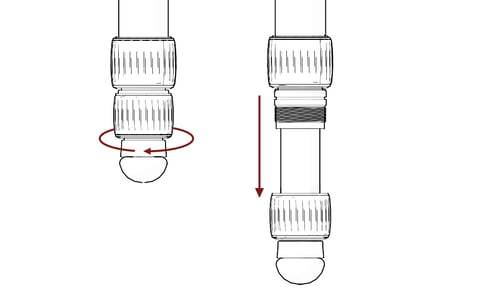

Step 1 – Loosen the Twist Lock
Turn the twist lock counterclockwise until it disengages completely and the leg threads separate.

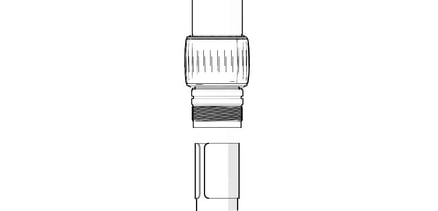

Step 2 – Remove the Leg
Slide the leg section off the previous leg section once loosened.

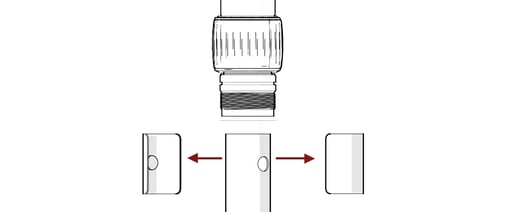

Step 3 – Collect the Anti-Twist Sleeves
Remove and keep the anti-twist sleeves together in a clean, secure location. These will be needed for reassembly later.
Step 4 – Prepare the Conversion Cap
Inspect the conversion cap, and twist lock threads to ensure they are clear of any dust or grit for a smooth fit.

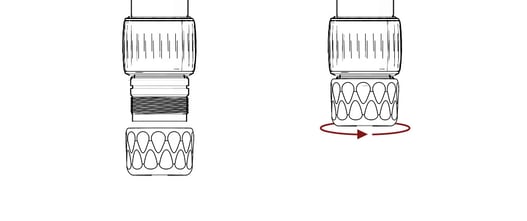

Step 5 – Install the Cap
Screw the conversion cap onto the exposed leg threads until snug. Hand-tighten only—do not over-tighten.

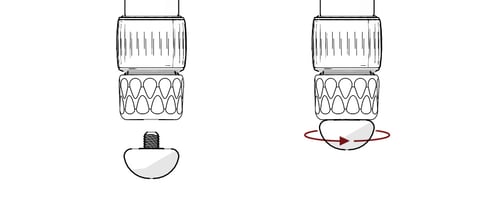

Step 6 – Transfer the Foot Accessory
Unscrew the foot (rubber, spike, or claw) from the removed leg and securely thread it onto the bottom of the installed conversion cap. Caution: low heat may be required to loosen Loctite if used to secure rubber feet.
Step 7 – Verify Assembly
Check that all parts are secure before operating your tripod.
Summary
The Leg Conversion Kit is engineered for precision, durability, and flexibility in the field. By following these steps, you can quickly adapt your tripod for alternative setups, maintain thread integrity, and ensure long-term component reliability while reducing the overall carry weight of your system. Regularly clean and inspect all threaded parts and anti-twist sleeves to ensure consistent performance and protect your investment.
