      VECTOR X Manual

      Manual for S.O.A.R VECTOR-X Mount

      Thank you for purchasing the Really Right Stuff Vector-X Mount. This manual will guide you through the installation, usage, and maintenance of your product, ensuring you get the most out of your equipment.

      ______________________________________________________________________________________

      Section 1- Compatability

      The VECTOR-X Mount will work seamlessly with Vectronix Shooting Solution's VECTOR X   &  RADICAL X, Rangefinding Binoculars.

      The VECTOR-X Mount design allows you to level your Vecoronix X Series Rangefinding Binoculars without the need to change their width. This Mount is also designed to allow its user to make fine leveling adjustments when attached to an RRS dovetail clamp.
      We recommend pairing the VECTOR-X Mount with a PT-Scout for the perfect pan-tilt setup.

      vector-x vectorx x pt-scout binos binoculars

      ______________________________________________________________________________________

      Section 2- Parts and Locations

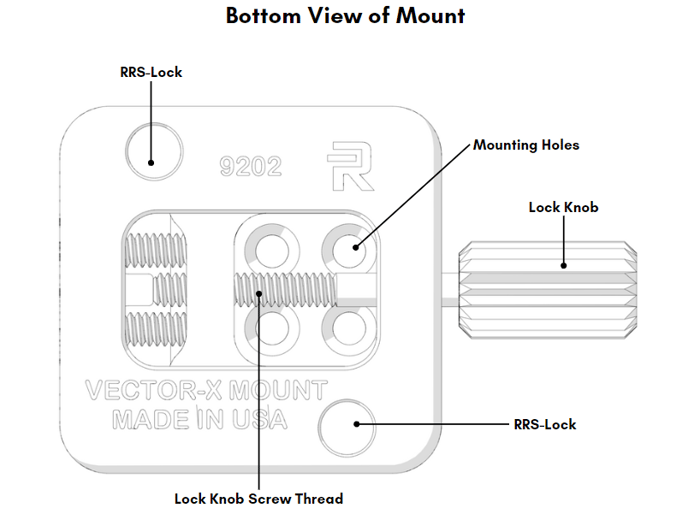

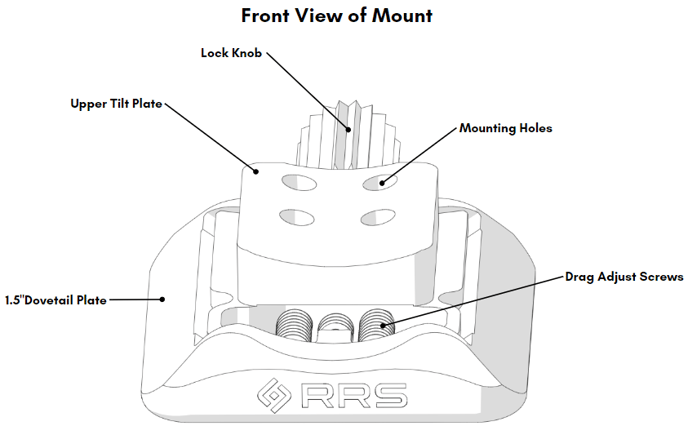

      See the image below to learn about the names and functions of each part:







      *Please note that the screws and torx key are not provided with this mount. Users should use the T10 Torx Key, and 4x M3 Screws included with the Vecoronix X Series Binoculars of choice.

      ______________________________________________________________

      Section 3- Installation

      Step 1: Removing Screws

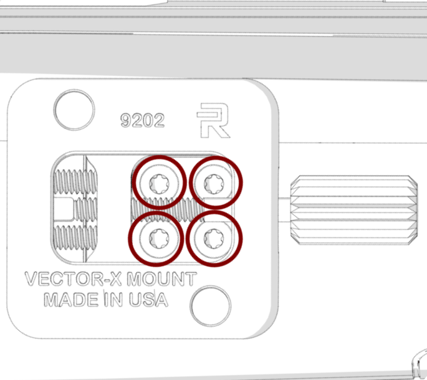

      Using the T10 Torx Key included with VECTOR X Series Binoculars, Remove all four M3 screws from the binoculars and set them aside.


      Step 2: Line Up the VECTOR-X Mount with VECTOR X Binoculars

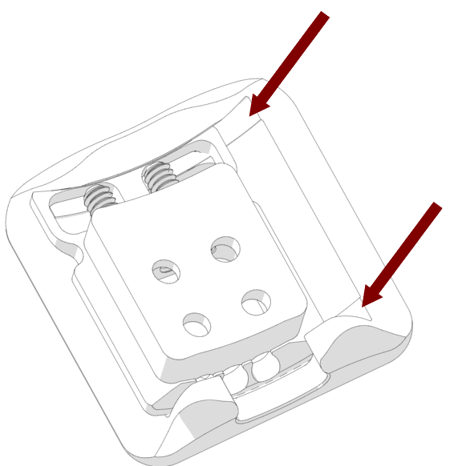

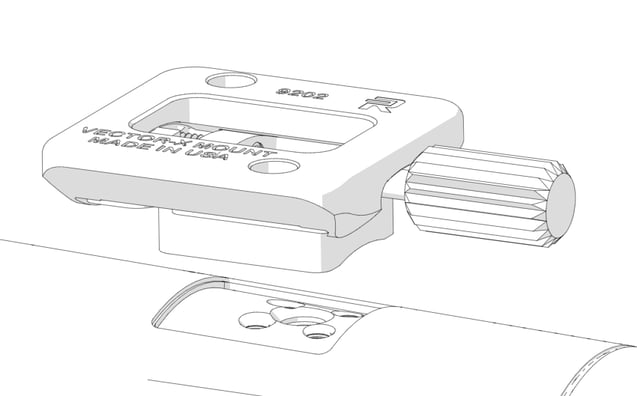

      Align the holes of the VECTOR-X Mount to the four holes of the binoculars. Note the curved mounting surface allows the mount to attach one way only.



      Step 3: Replacing screws & Removing Lock Knob

      Using the T10 Torx Key included with the VECTOR-X Binoculars, Install the 4 screws supplied with the binoculars.

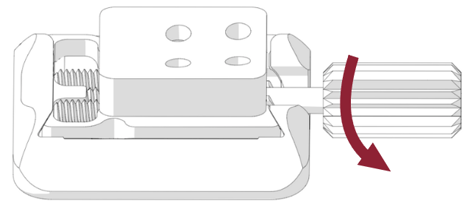

      If needed, the center lock knob can be removed first for better access by turning it counterclockwise until the lock knob is released.

      ______________________________________________________________________________________



      Section 4- Usage and Maintenance

      Using your VECTOR-X Mount:

      The VECTOR-X Mount design allows you to level your Vecoronix X Series Rangefinding Binoculars without the need to change their width. This Mount is also designed to allow the user to make fine leveling adjustments when attached to an RRS dovetail clamp. To use the VECTOR-X Mount:

      1. Install VECTOR-X Mount to Binoculars (see Section 3-Installation for help)

      2. Attach the VECTOR-X Mount's dovetail plate to a dovetail clamp

      3. Unlock the mount by loosening the lock knob

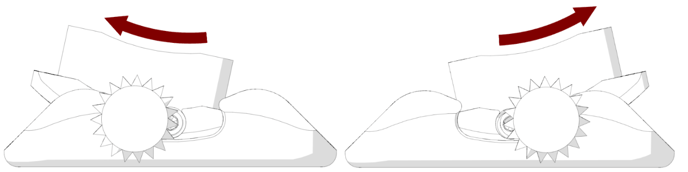

      4. Tilt the Binoculars to level them out to the desired position

      5. Lock the mount by tightening the lock knob



       Adjusting The Drag Knob

      The VECTOR-X Mount comes timed from the factory to our preferred drag setting. The drag setting of the mount can be fine-adjusted using a 1/16" hex key (not included). This setting affects how much resistance the binoculars have to move when the lock knob is disengaged.

      To adjust the drag knob settings:

      1. Ensure the VECTOR-X mount is installed onto the binoculars.

      2. Attach the binoculars to an RRS Clamp

      3. Unscrew and remove the lock knob

      4. Adjust the two drag screws evenly, at small increments (clockwise to increase, counterclockwise to decrease drag). Make sure not to overtighten the screws.

      5. Once the desired drag tension is applied reinstall the lock knob.

      ______________________________________________________________________________________

      Maintenance & Cleaning

      Occasionally, the bearing surfaces should be greased.

      Light lubrication can be achieved by removing the lock knob and applying a small amount of Superlube or equivalent synthetic grease to the bearing tracks while tilting the mount in either direction.

      For a full strip and cleaning, the mount can be completely removed from the binos. Once the lock knob is removed, the tilt components can be separated.

      We recommend cleaning components with a small amount of lightly soaped water and a brush.

      Be sure to rinse off all soap, and to completely dry all components after cleaning to prevent rust and soap buildup.



      ______________________________________________________________________________________

      For questions regarding the VECTOR-X Mount, reach out to our customer service representatives at support@reallyrightstuff.com or call us at 385-248-0777
